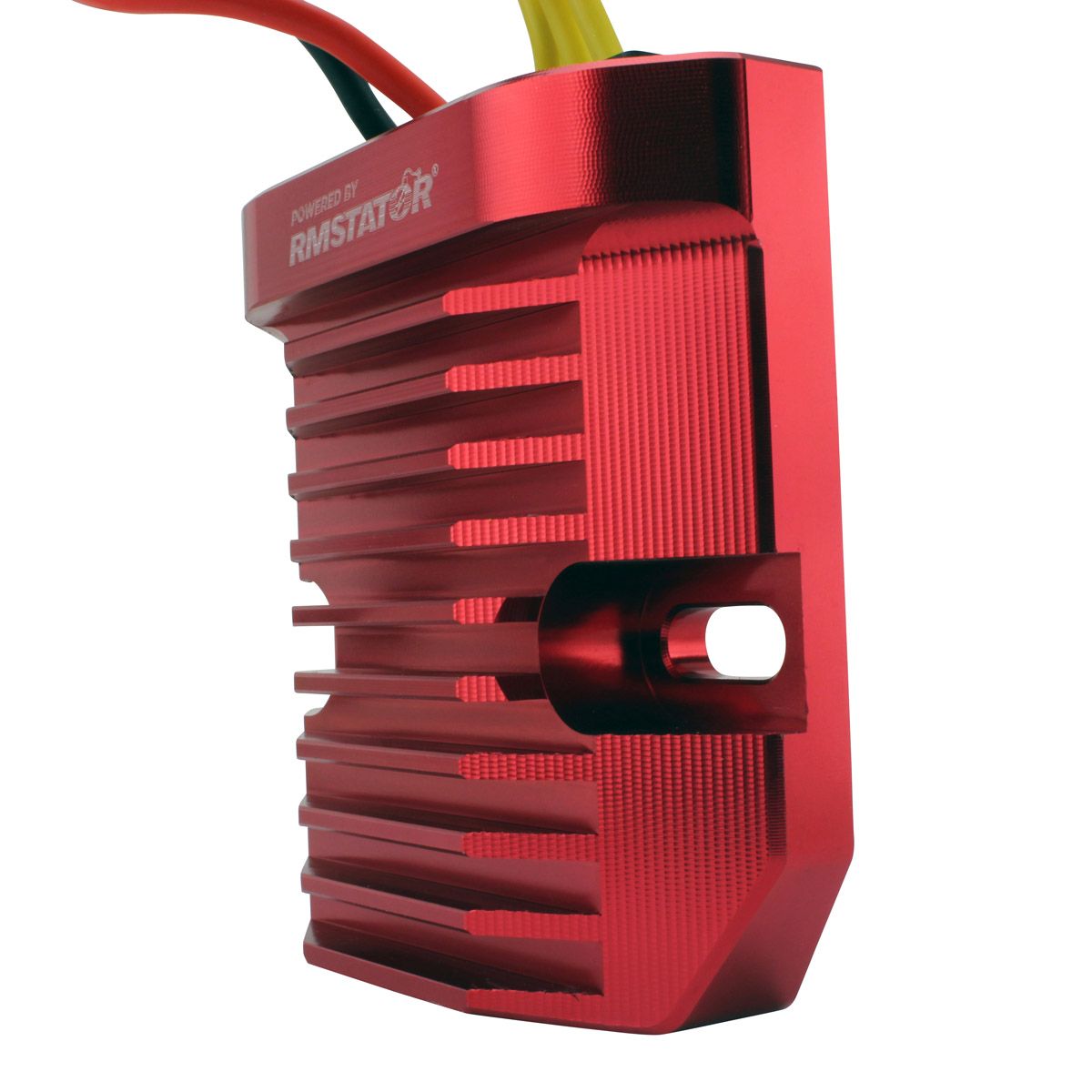

RMSTATOR Mosfet Regulator with Bypass Tri Daytona/Street Triple 675 RMS022107616

NEW WIRE HARNESS BYPASS DESIGN

The failure-prone harnesses on Triumphs are known to develop corrosion whichincreases electrical resistance which in turn increases the temperature ofwires to the point where connectors start melting. When this happen the voltageregulator (and most likely the stator) is failing incurring steep repairexpenses.

Our new bypass voltage regulator brings back the renowned RMSTATOR Mosfettechnology with the RMSTATOR machined aluminum case in a new configurationdesigned to bypass the main wiring harness and connect the voltage regulatordirectly to the battery. This configuration has demonstrated a major increase involtage regulator reliability in real life scenarios over the years.

Features:

Mosfet circuit
Significantly lowers the operatingtemperature for an increased voltage regulator lifespan. Provide a steadier andsmoother signal to the battery.

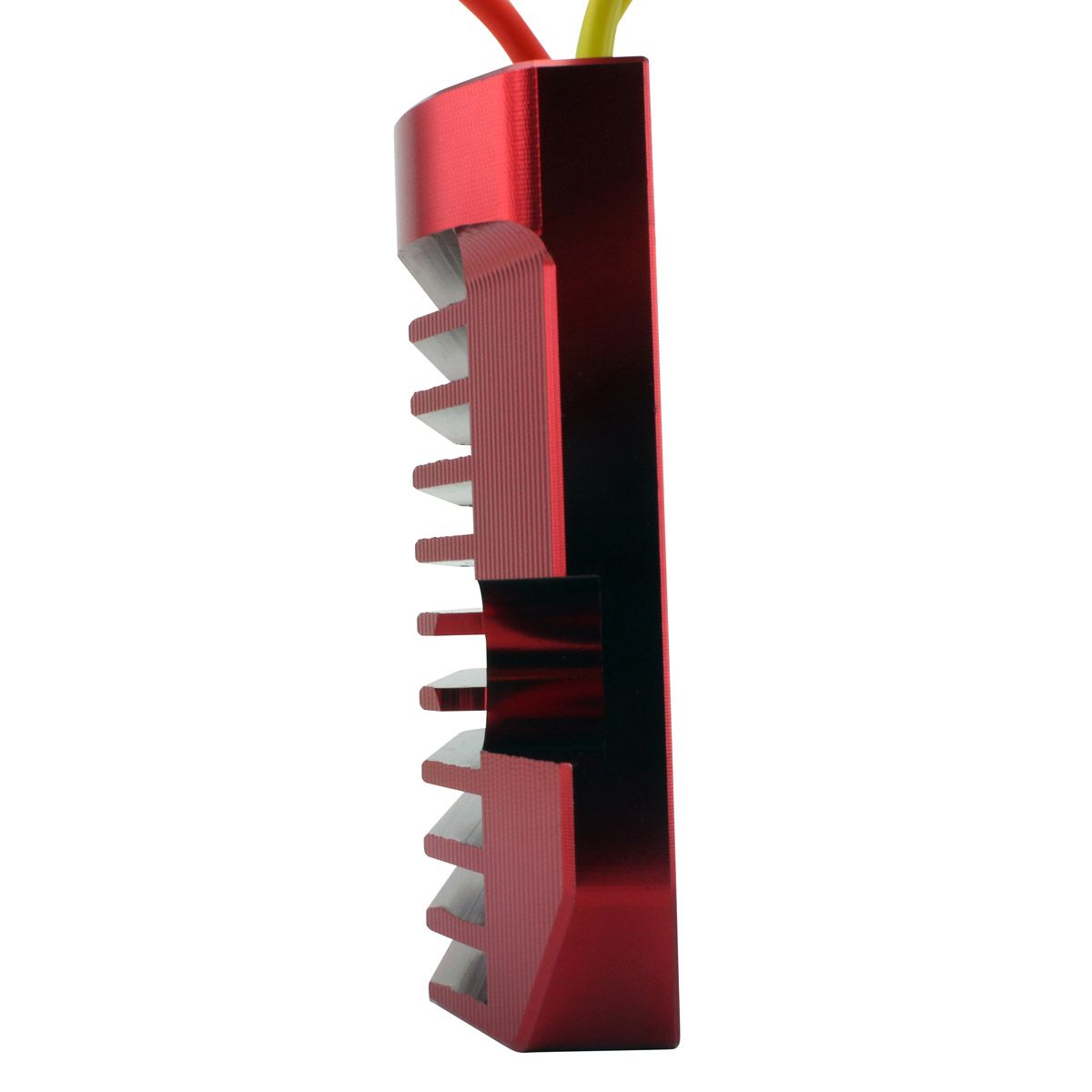

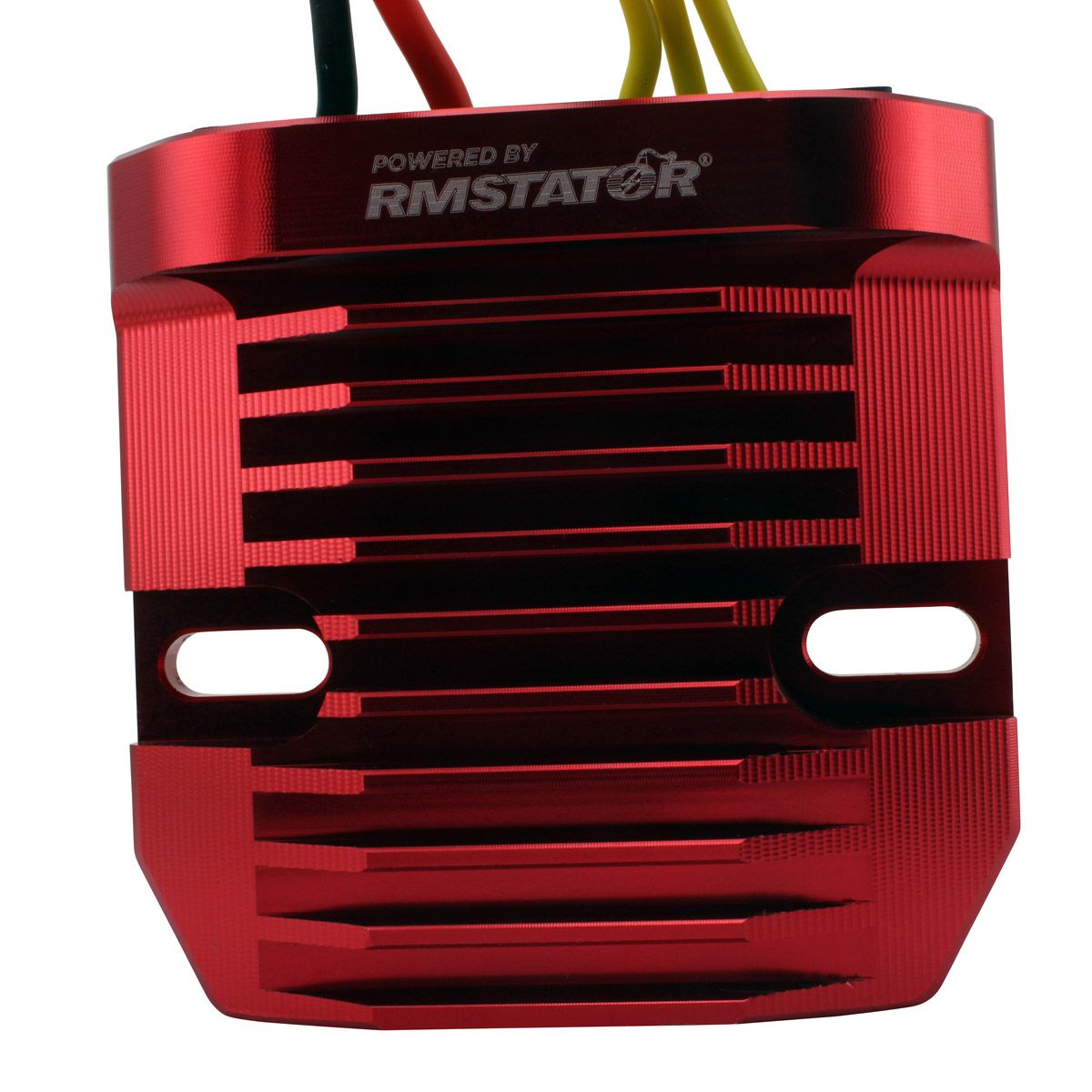

Billet aluminum housing
Runs 33% cooler than standardcast voltage regulator housings.

PRO-FIT System

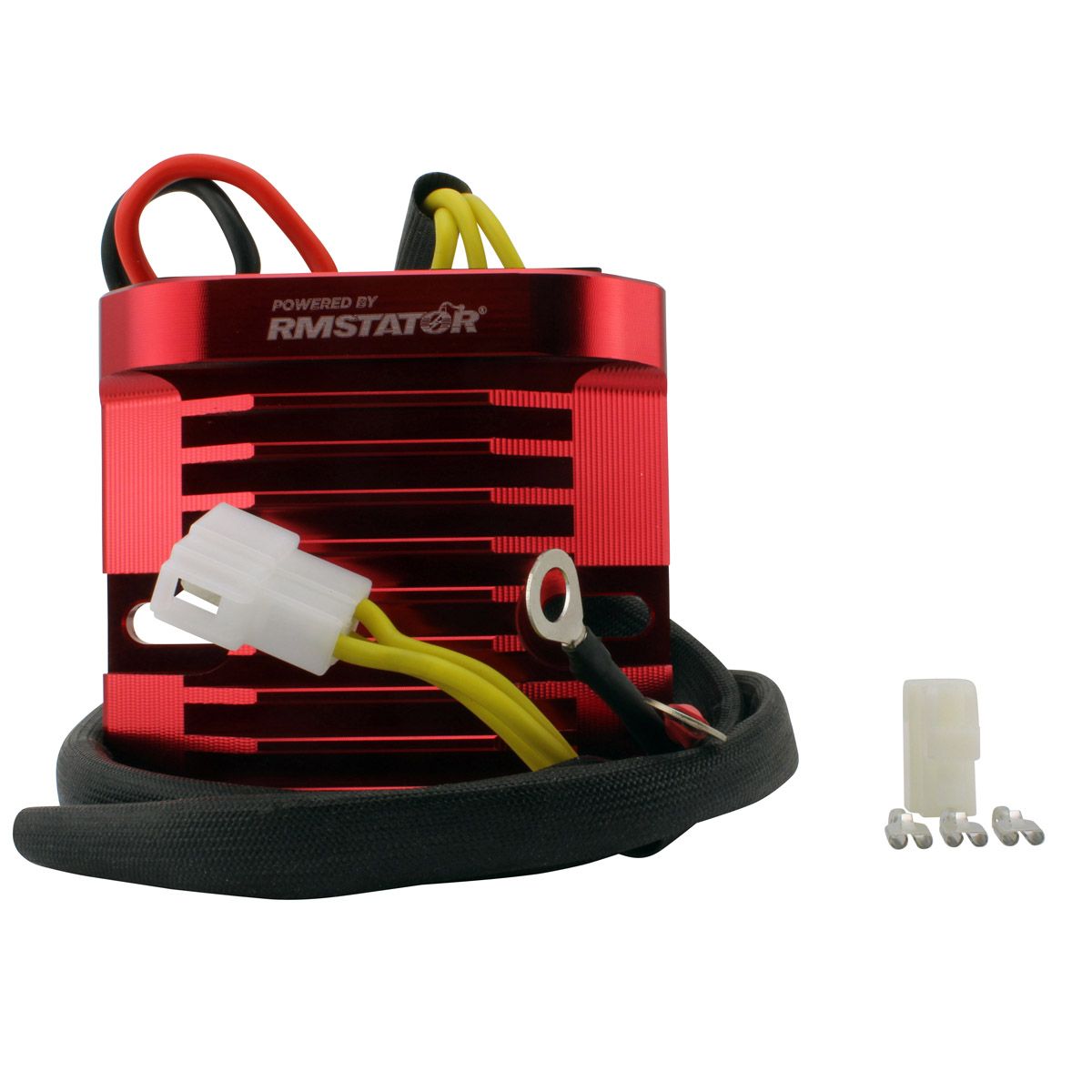

Includes everything required to performa RMSTATOR-style professional installation: part connectors harness-sideconnectors and dielectric connector grease.

2-Year Warranty
Covered with a 2-year warranty for acomplete peace of mind

Dimensions:

Width: 95 mm
Length: 90 mm
Height: 30 mm
Wires length: 811 mm and 350 mm
Fixation holes centreto centre: 75 mm

Other specifications:

Number of plugs: 2
Number of pins: 5
Number of wires: 5
Minimum Charging Voltage: 14.5V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open CircuitVoltage: < 15 V
Operation Temperature: -20° C to 85°C
