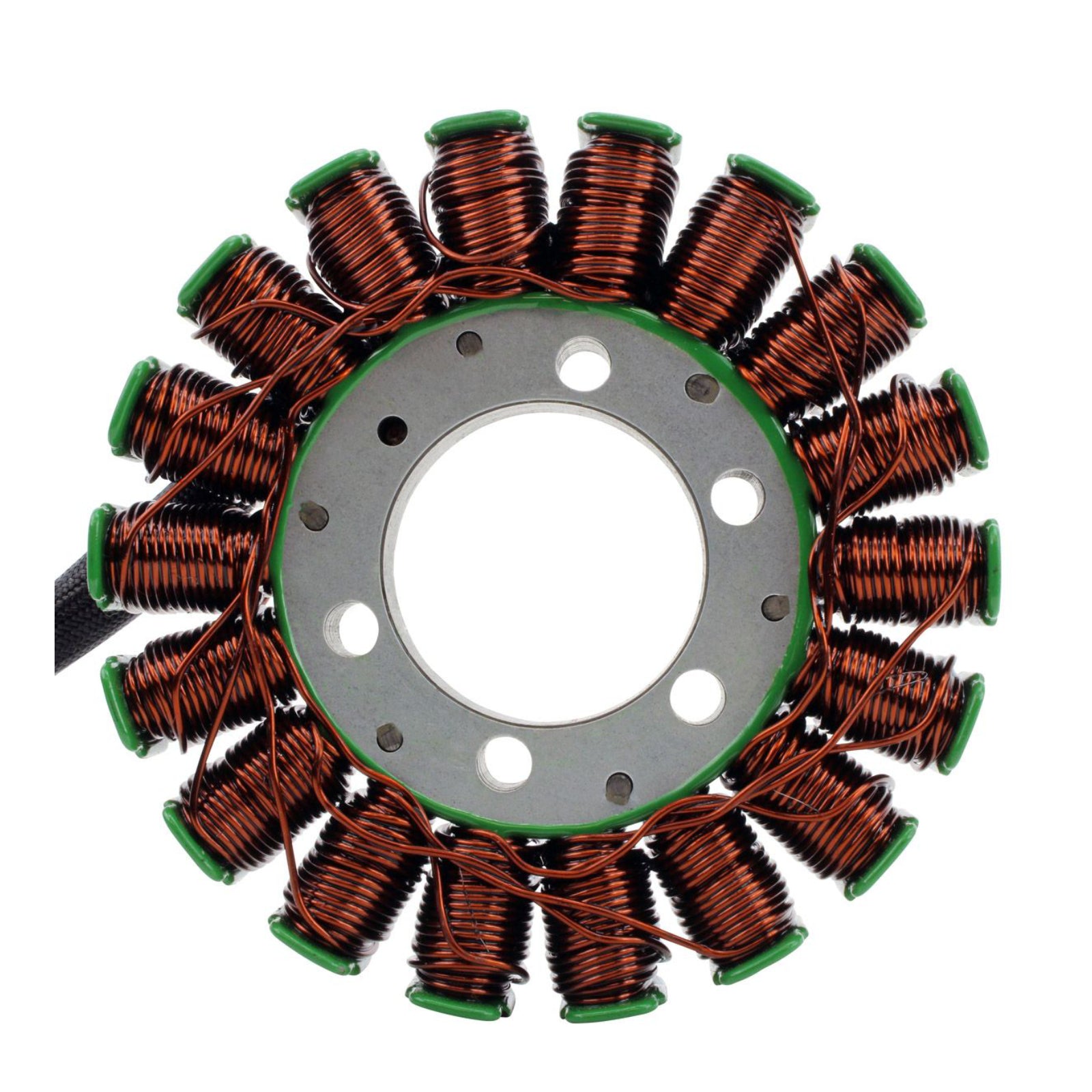

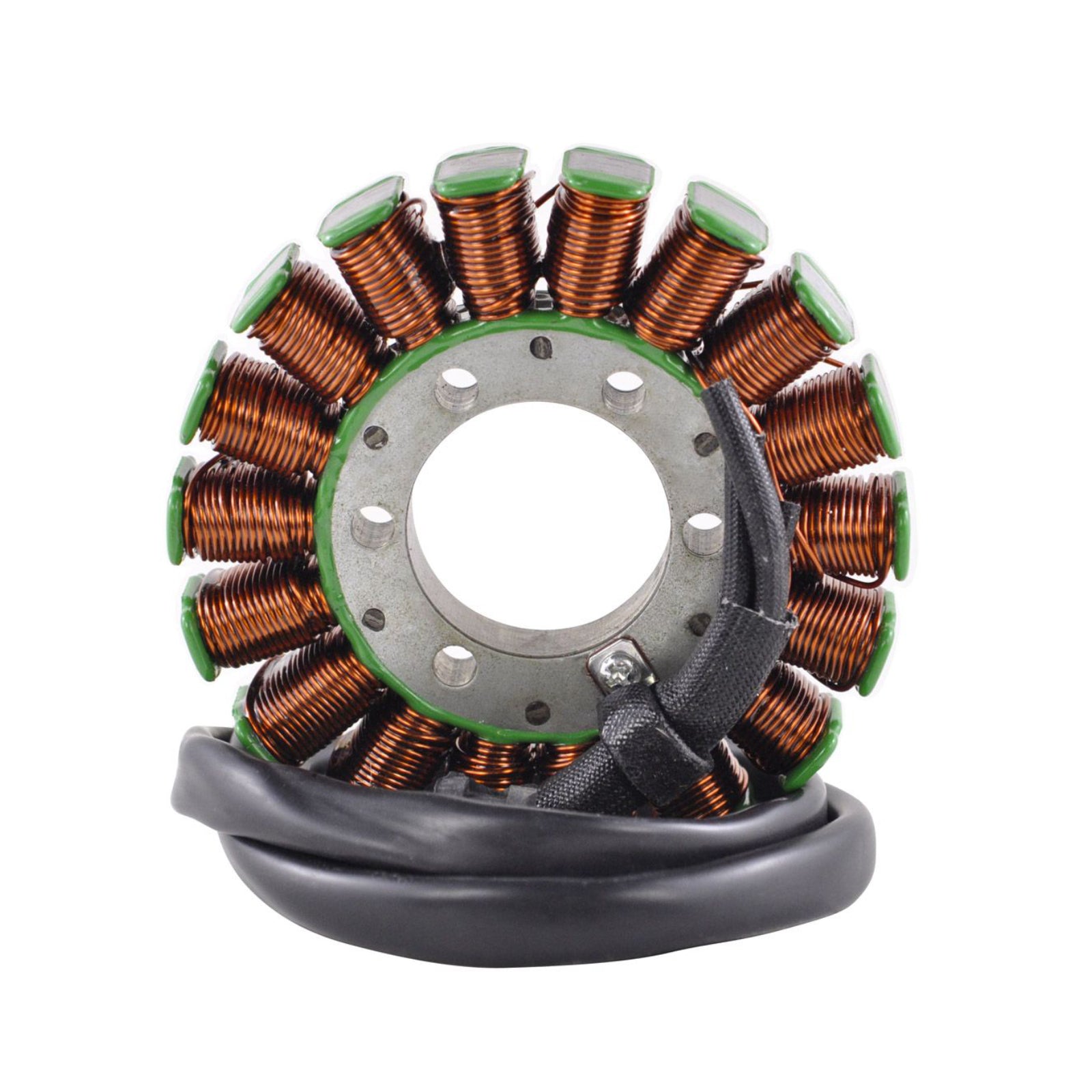

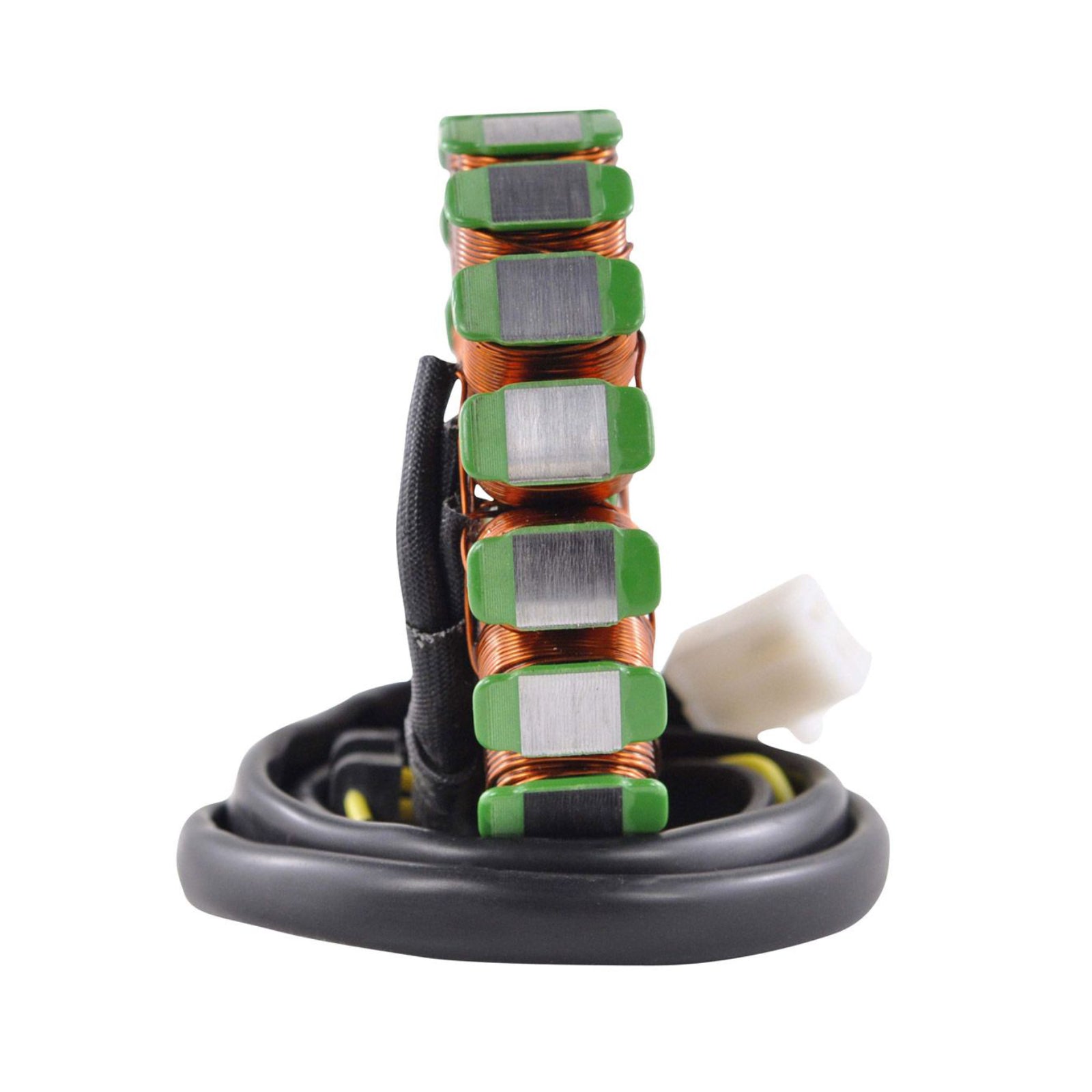

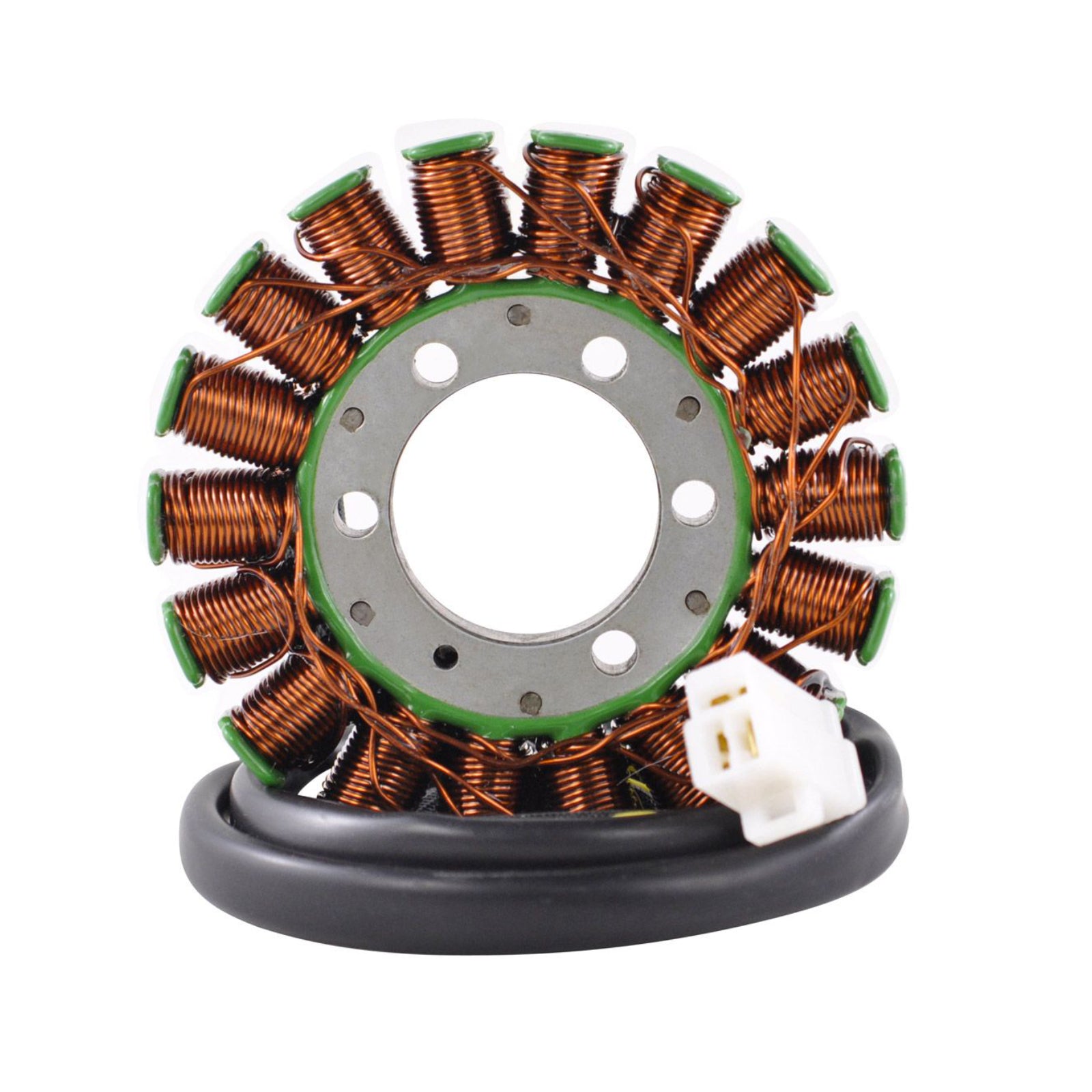

New RMSTATOR Stator For Kawasaki NINJA 250 R 2008-2012 #RMS010101490

Brand new aftermarket generatorstator

• Direct replacement to your originalunit
• Plug-and-play direct fit easy installation
• Highestgrade lamination materials
• Highest grade copper windings resistantto 200 degrees Celsius.
• Connector included
• Rubber grommetincluded
• All products shipped are tested

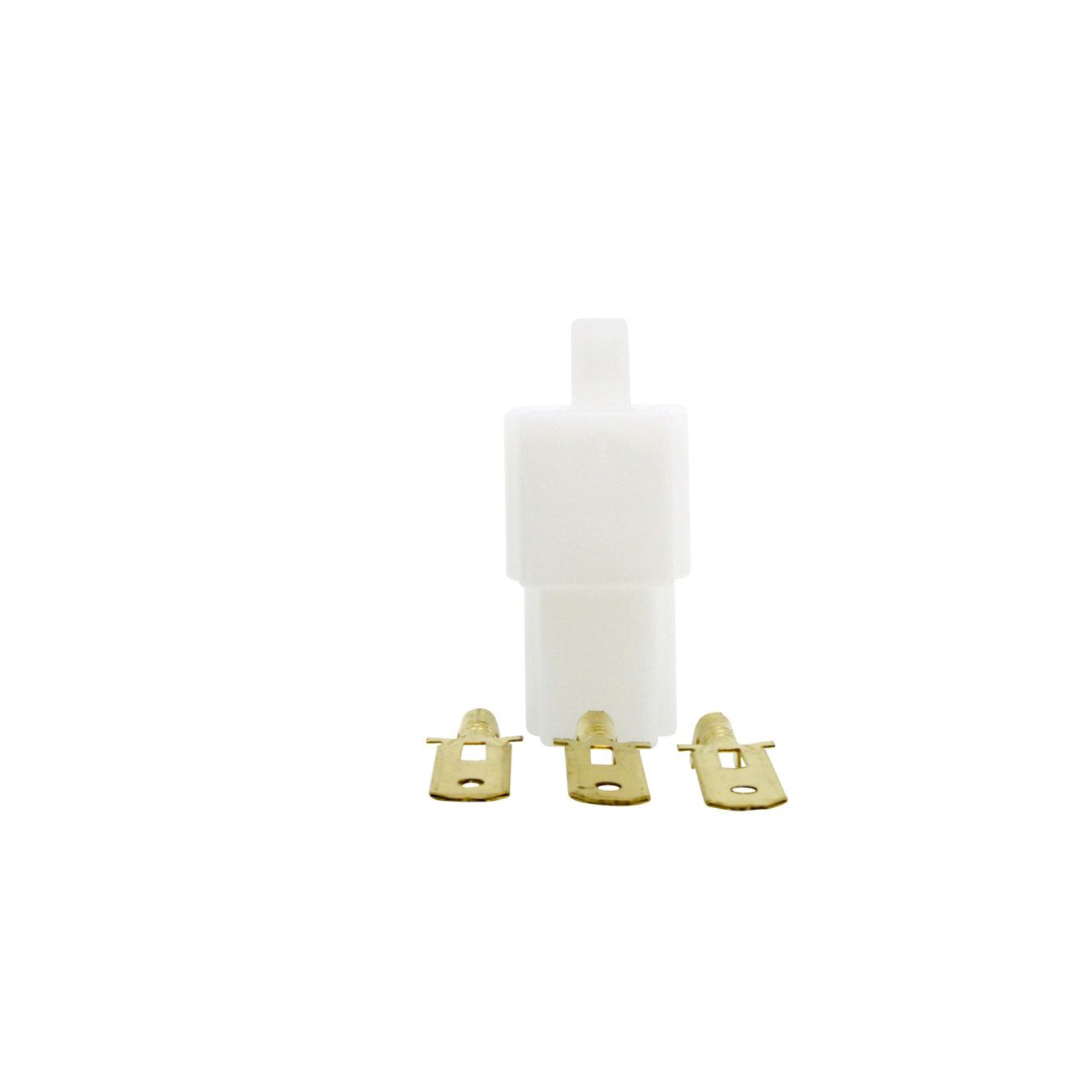

We have evenincluded the opposite connector (main harness side) as we know these areoften melted / corroded / defective and a major cause for repetitiveelectrical issues.

All item pictures are accurate; if in doubt do nothesitate to compare our item to your originalpart.

Specifications:

Dimensions:

• Interior diameter: 38 mm
• Exterior diameter: 107mm
• Thickness: 15 mm
• Length of wires stator to grommet: 180mm
• Length of wires grommet to plug: 780 mm

Otherspecifications:

• Number of wires: 3
• Number of plugs:1
• Number of pins: 3

Wire to wireresistance:

• Alternator : Yellow to Yellow = 0.4 ohms+-20%

Note: Battery condition is extremelyimportant. No stator can work correctly with a bad or weakbattery. Always fully charge your battery before performingany charging system tests or replacing parts. If there is anydoubt have the battery load tested or replaced.
