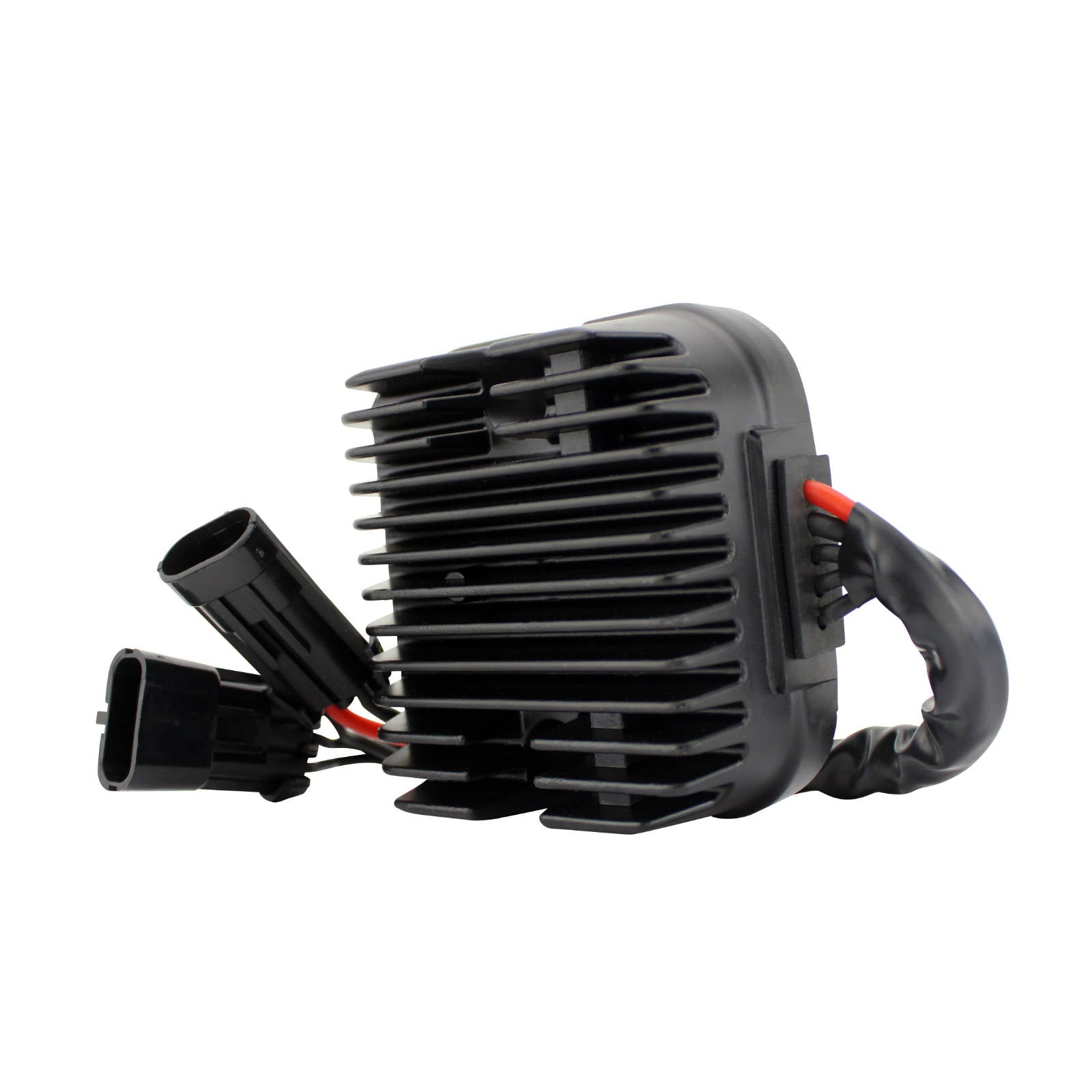

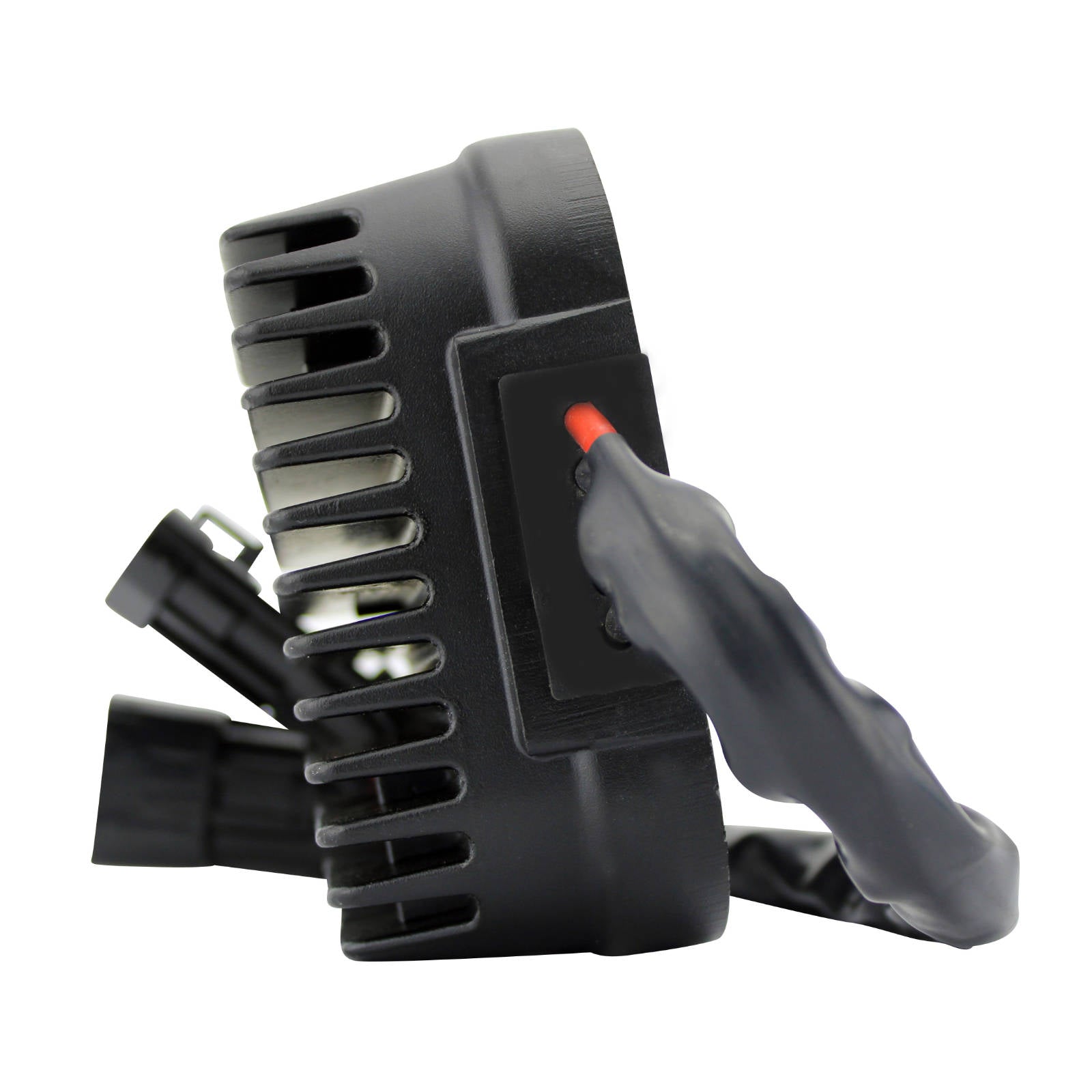

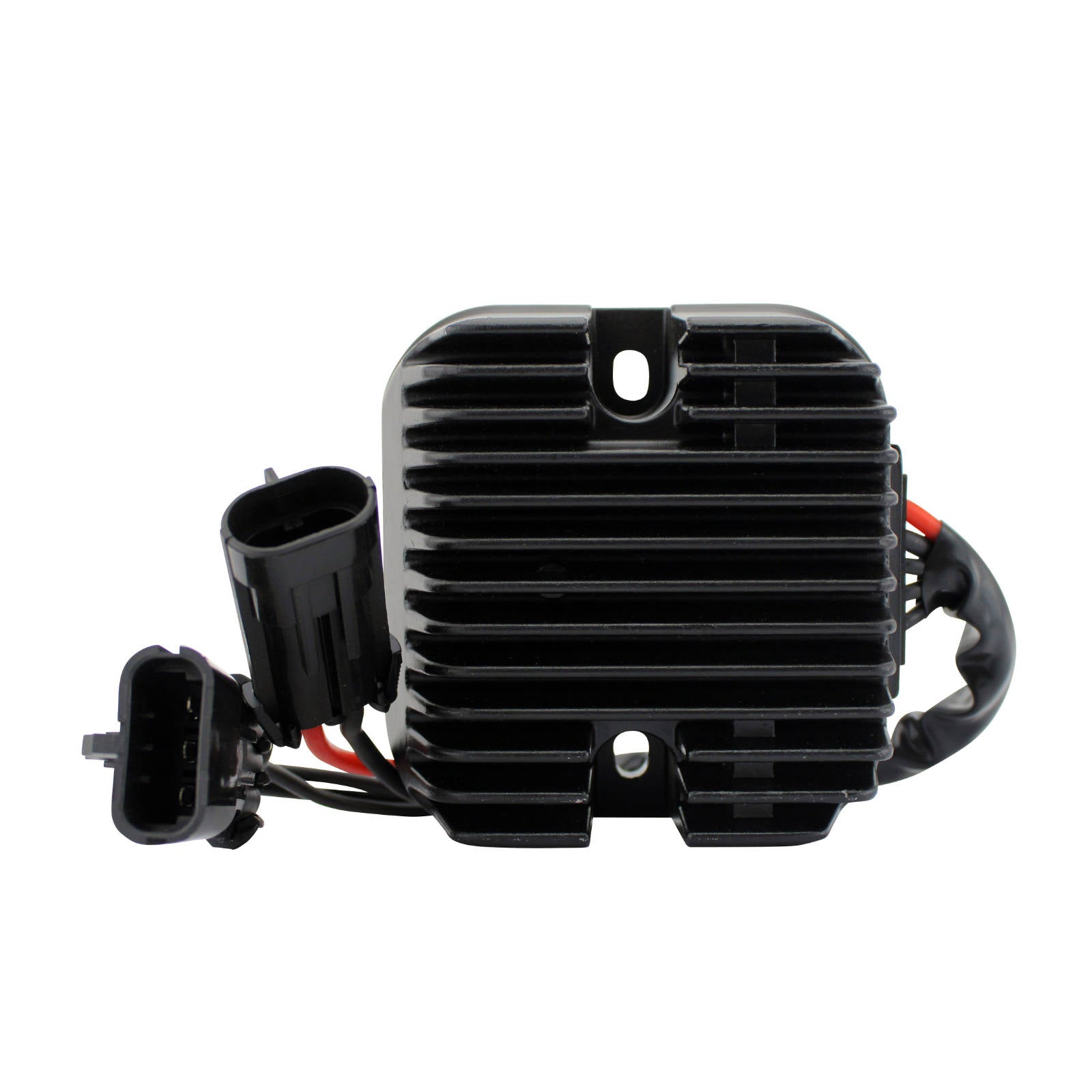

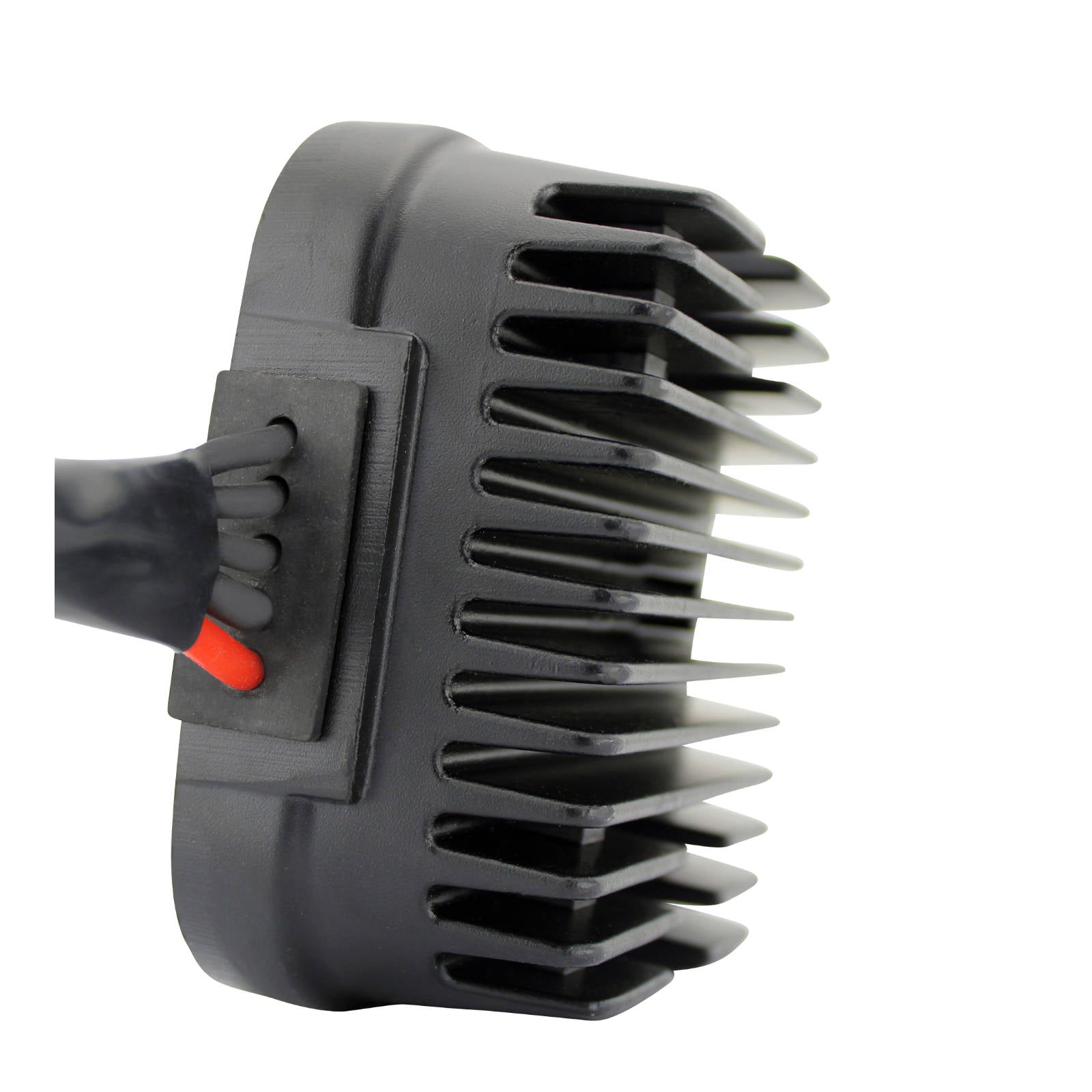

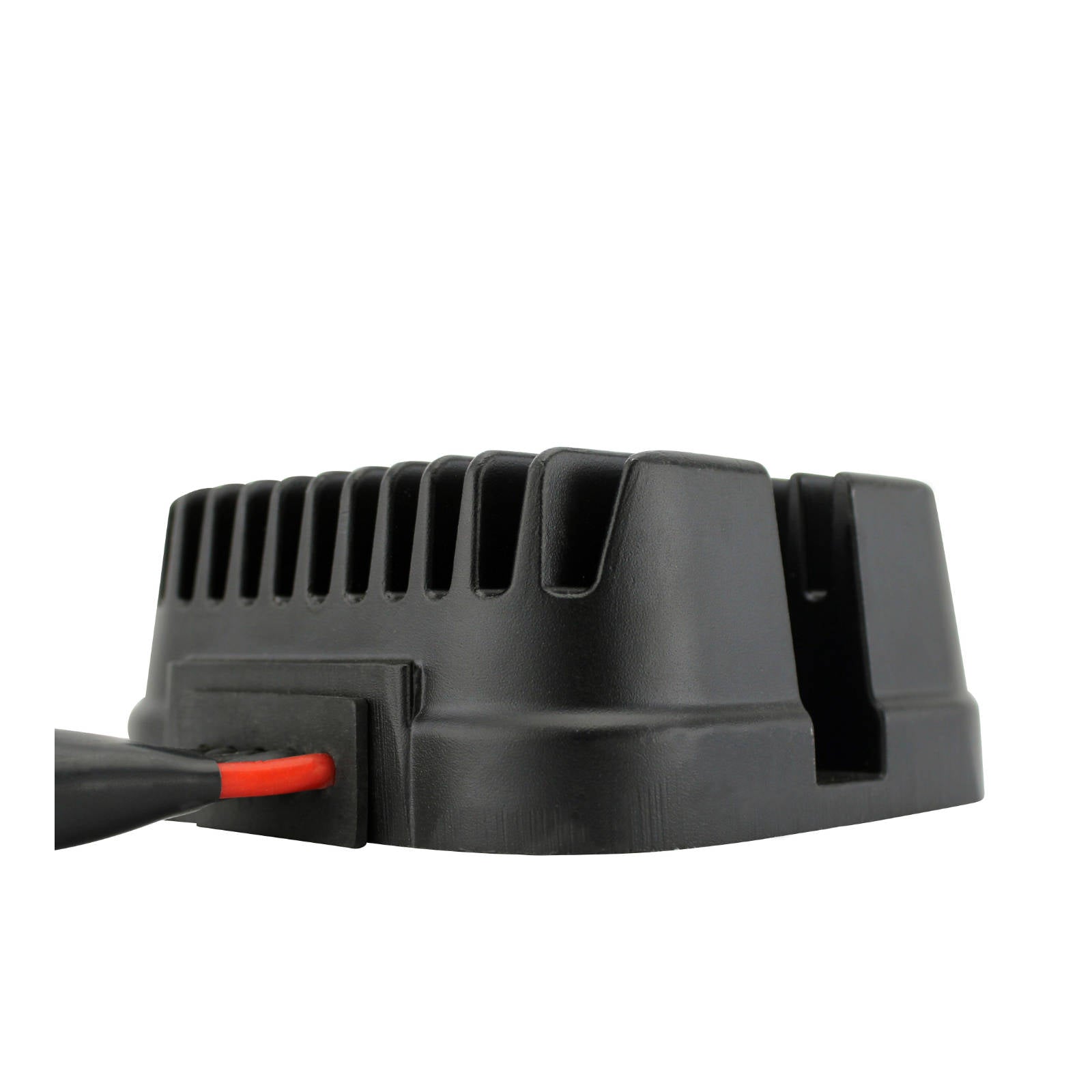

New RMSTATOR Mosfet Regulator Victory Cory Ness Jckpt #RMS020107307

This product is an advanced design that lowers operating temperaturesfor extended longevity and better performance than the OEMpart.

Brand new Mosfet Voltage RegulatorRectifier

STOP BURNING YOUR REGULATOR RECTIFIER!

It is time to update or replace your voltage regulator with theadvanced MOSFET type.

It runs cooler than all OEMdiode-style regulators.

• Direct replacement to your originalunit
• Plug-and-play direct fit easy installation
• Thequality exceeds the OEM equipment
• Higher grade of electriccomponents
• All shipped products aretested

Dimensions:

• Width: 107 mm
• Length: 112 mm
• Height: 36 mm
• Stator Wirelength: 290 mm
• Battery Wire length: 290 mm
• Distance betweenfixation holes center to center: 83mm

Otherspecifications:

• Number of plugs: 2
• Number ofpins: 5
• Number of wires: 5
• Minimum Charging Voltage: 14.5 V+- 0.5 V
• Maximum Charging Current: 50 A / 500 W
• OpenCircuit Voltage: < 15 V
• Operation Temperature: -20°C to85°C
